Tests and troubleshooting



T-Sensor version 0.41 pinout:


1. Output to audiocard +2.5/-2.5 v. (about 5 kHz)
2. Ground 0 v.
3.Pulse output 0/+5 v. to microcontroller (about 20 kHz)
4. Hi freq. output. Pulses 0/+5 v. (about 160 kHz)
5. External Synchronisation input1
6. External Synchronisation input2
7. Ground 0 v.
8. Power +9 v. & extra output for long distance connection
9, 10. Antenna (paralleled).

OSCILOGRAMS

No antenna connected!!



Time scale 0.1 ms/mesure

Input level scale - 5 volts/mesure

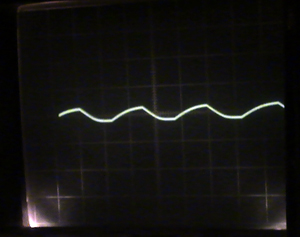

Pin1

Pin2 - 0 Volts (ground)

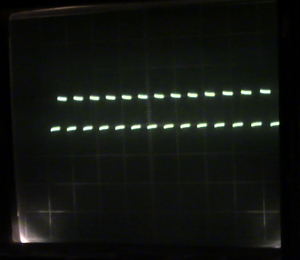

Pin3

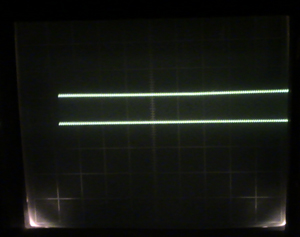

Pin4



Pin4 with the time scale 10 mks/mesure



Pin5 and Pin6 - 0 Volts

Pin7 - ground

Pin8 - Power (min +7, max +10)

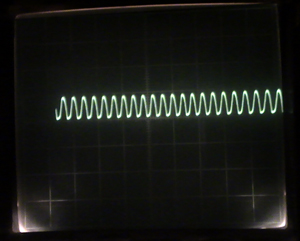

4069 pin2. Time scale 10 mks/mesure

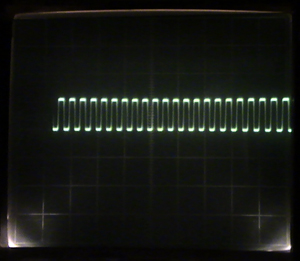

4069 pin3

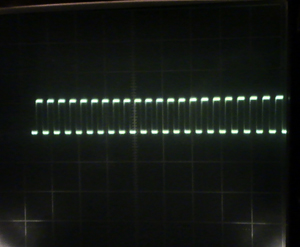

4518 pin2




4518 pin3

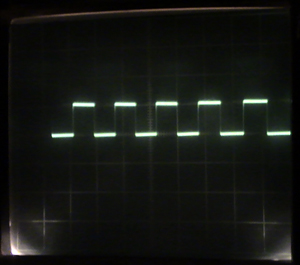

4518 pin4

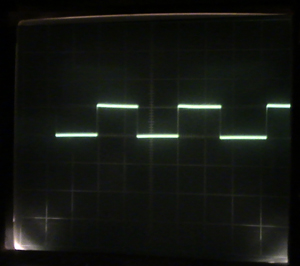

4518 pin5

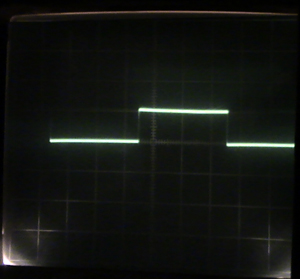

4518 pin6

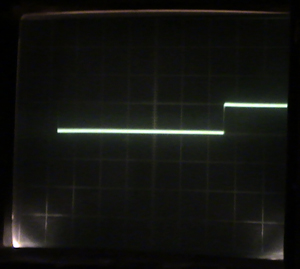

4518 pin11

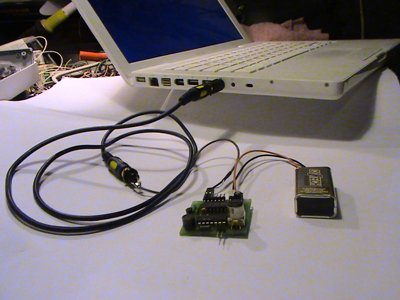

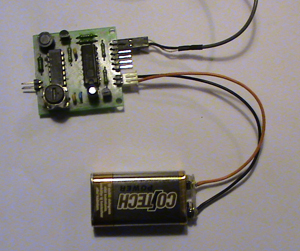

The way to connect the sensor to computer's audio input

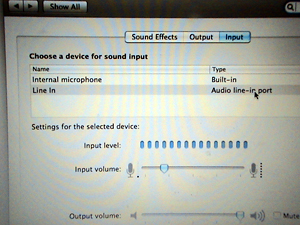

Sound preferences and input level setings

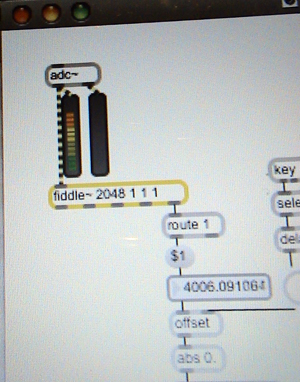

Input level in the theremin00 patch

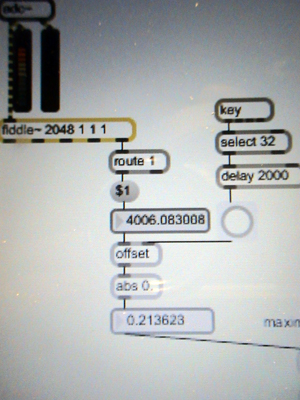

Carrier frequency should be about 4000 (3500 - 4500)

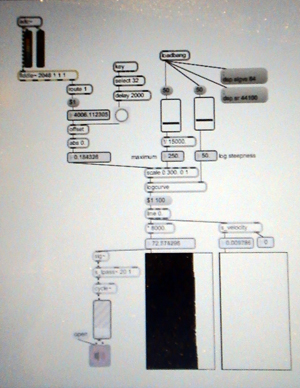

Patch view after DSP on, prior to the "set zero" (push space)

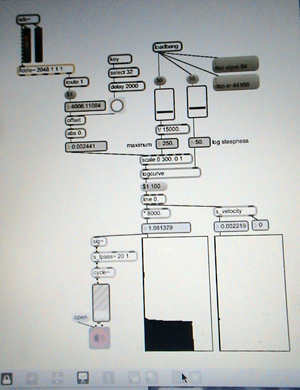

Patch view just after "set zero" (push space)

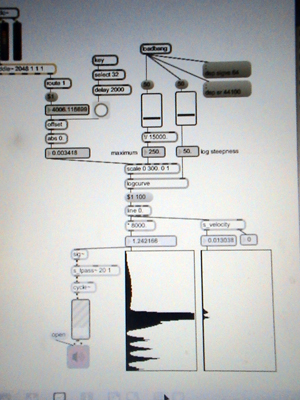

Patch view during correct sensor operetion

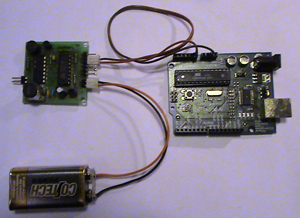

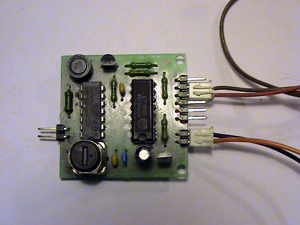

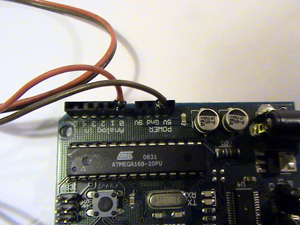

ARDUINO CONNECTION

The sensor should be powered with external power supply min +7, max + 10 v
